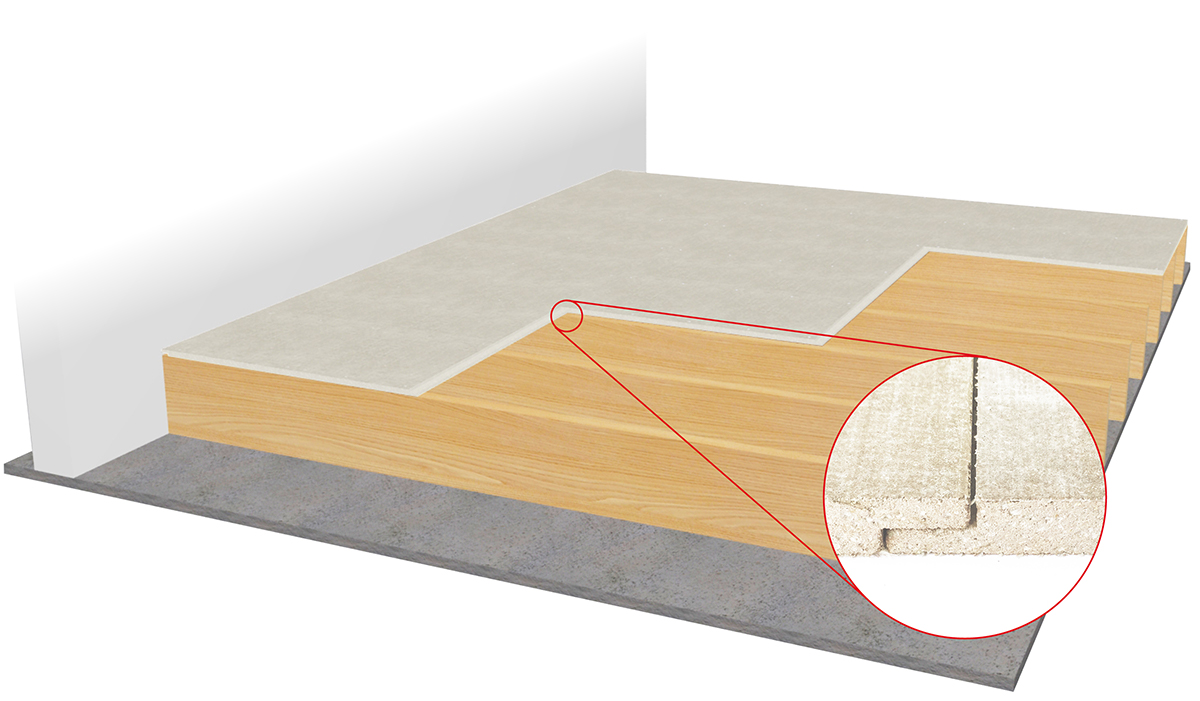

Maglok™ DragonBoard® is an engineered “fit for purpose” fibre reinforced Magnesium (MgSo4) flooring board substrate.

DragonBoard®
The Magnesium (MgSo4) flooring board substrate with over 3 million square metres installed globally since 2004.

20mm BOARD AVAILABLE IN TWO SHEET SIZES:
• 1800 x 1200mm
(suitable for 450mm or 600mm joist spacings)
• 2000 x 1200mm
(suitable for 400mm joist spacings)

Download Installation Guide Download Installation Guide
Watch: Maglok Info Watch: Maglok Info
Watch: Maglok How-To Watch: Maglok How-To

NOT PLYWOOD

NOT STRANDBOARD

NOT PARTICLE BOARD

NOT FIBRE CEMENT BOARD


"We've been successfully installing Maglok Dragon Board for years, and have found it delivers the best flooring result and long term durability required by the NZ building code."  Read Full Testimony
Grant Millar Director, Precision Construction

 THE BENEFITS

SQUEAK-FREE

NO TILE UNDERLAY REQUIRED

Ready to finish

COST EFFECTIVE

Less than fibre cement, similar to treated structural ply

EASY TO LIFT, CARRY & INSTALL

Manageable sheets in two sizes:
– 20mm x 1800mm x 1200mm
– 20mm x 2000mm x 1200mm

Screw gun, shiplap edge = no nogging

FIRE PROOF

Non-combustible, zero flame and smoke spread, 120/120 rated

DIAPHRAGM BRACING CAPACITY

Very strong and secure

WATER RESISTANT

Breathes moisture out without losing any structural integrity

NO HAZARDOUS MATERIALS*

Calcium silica free, formaldehyde free, asbestos free.
*Does contain fibreglass mesh for reinforcing

MOULD & INSECT PROOF

Inert, inedible, non-toxic and hypoallergenic

GREENER

More environmentally-friendly to produce

ACOUSTIC RATED

Part of SoundDown’s rated Acoustic Floor System. IIC 63db.

STC 65db.


CERTIFICATION

Maglok

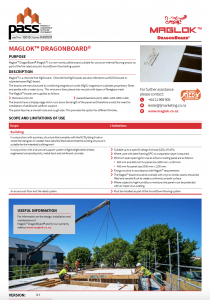

A PASS™ is a Product Assurance Supplier Statement.

A PASS™ makes a clear, rigorous statement that Maglok Dragonboard’s products comply with all the necessary regulations and legislation. It also summarises Maglok Dragonboard’s purpose, scope of use and any limitations.


Download Download

WHO WE ARE

Maglok is a New Zealand Trademark Brand.

Dragonboard® is a UT patented, UL approved, fire resistant, mould resistant, high impact interior and exterior construction panel.

Global Procurement Supplies Limited is the New Zealand agent.

For further reference please visit: www.dragonboard.com or www.dragonboards.ca


Maglok is proud to be recognised as a high performer product, contributing to the High Performer Building mark of quality.
